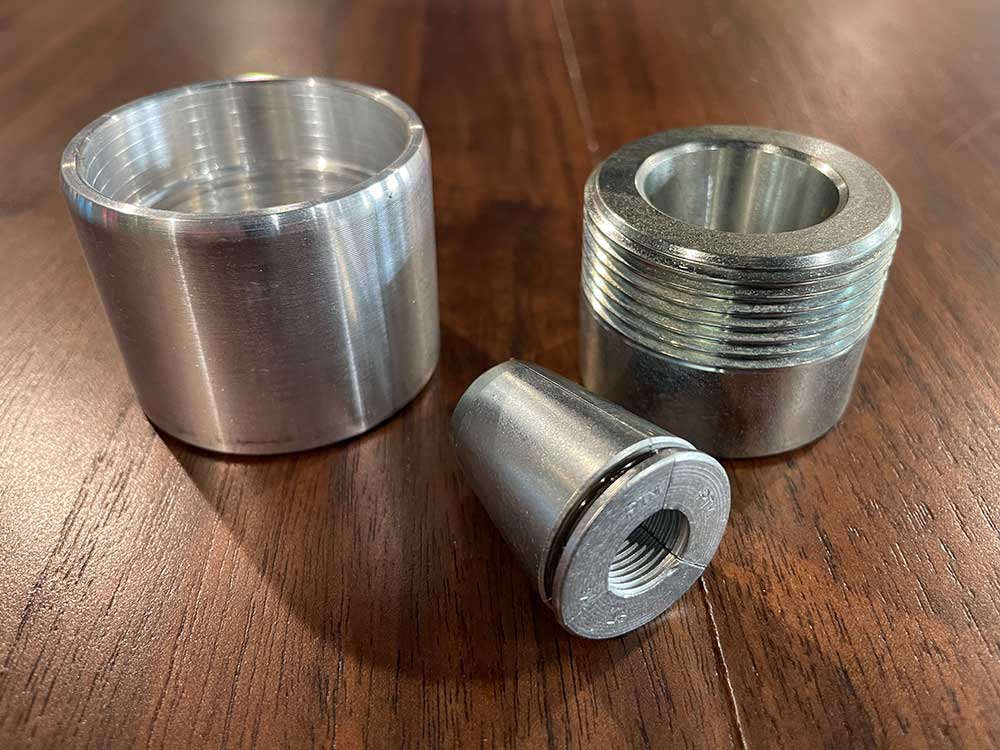

CSC Chuck and 3 Wedge Dead End System
Used at the ends of a parking garage cable barrier system, a CSC Chuck and 3 Wedge Dead End System provides a cost-effective and reliable way to significantly reduce barrier cabling installation time.
Available with or without an end stem, our 3 Wedge Dead End System helps cut off the wire at a parking garage cable barrier system’s termination point. The fixed-end wedge features prefabricated termination points, which ensure proper cable placement and maintain thread tension when ends are inaccessible.
A special plate with machined holes allows for code-specified parking wire cable alignment.
SPECS
CSC #8
CSC #10
CSC #11
CSC #23
PACKAGED UNIT WEIGHT
40
90
100
130
WINCH CAPACITY (LBS)
3,000
10,000
10,000
10,000
DRUM WIDTH
5.35"
5.00'
8.74"
21.00'
DRUM FLANGE SIZE (OUTER)
6"
9.92"
9.92"
9.92"
BOLT HOLE DIMENSIONS (0.5" BOLT)
4.57" × 5.69"
7.01 × 8.44"
11.04 × 8.44"
23 × 8.44"
OVERALL DIMENSIONS (Wx LX H)
7.00" × 13.20" × 7.50"
10.70" × 15.50" × 12.15"
10.70" × 19.20" × 12.15"
10.70" × 31.35" × 12.15"
Cable Capacity
CSC #8
CSC #10
CSC #11
CSC #23
1/4"
150 FT.
-
-
-
5/16"
150 FT.
-
-
-
3/8"
65 FT.
130 FT.
260 FT.
560 FT.
1/2"
-
95 FT.
185 FT.
320 FT.
5/8"
-
60 FT.
120 FT.
280 FT.
3/4"
-
40 FT.
75 FT.
185 FT.
