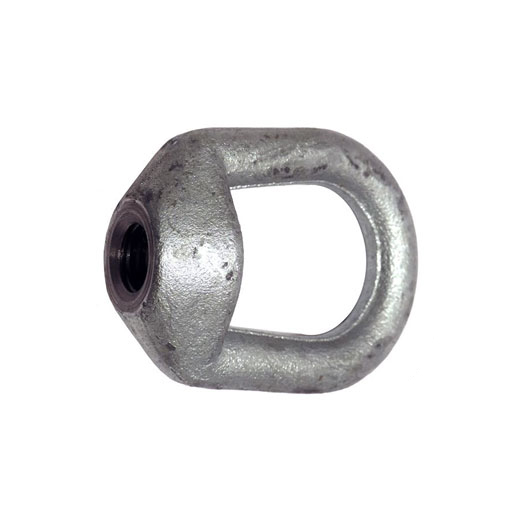

Eye Nut
Oval or round in shape, and rated for different types of applications, eye nuts (eyenuts) are looped-head fasteners designed to receive a hook or rope.
Load-rated eye nuts are designed for vertical lifting, but are not recommended for use with angular lifts. Non-load-rated eye nuts are not rated for lifting applications, and are instead designed for use with tie downs and guiding wires.
It’s common for eye nuts to differ in regards to material and finish, with metallic eye nuts made of aluminum, brass, bronze, steel, hardened steel, stainless steel, titanium, and proprietary alloys.
SPECS
CSC #8
CSC #10
CSC #11
CSC #23
PACKAGED UNIT WEIGHT
40
90
100
130
WINCH CAPACITY (LBS)
3,000
10,000
10,000
10,000
DRUM WIDTH
5.35"
5.00'
8.74"
21.00'
DRUM FLANGE SIZE (OUTER)
6"
9.92"
9.92"
9.92"
BOLT HOLE DIMENSIONS (0.5" BOLT)
4.57" × 5.69"
7.01 × 8.44"
11.04 × 8.44"
23 × 8.44"
OVERALL DIMENSIONS (Wx LX H)
7.00" × 13.20" × 7.50"
10.70" × 15.50" × 12.15"
10.70" × 19.20" × 12.15"
10.70" × 31.35" × 12.15"
Cable Capacity
CSC #8
CSC #10
CSC #11
CSC #23
1/4"
150 FT.
-
-
-
5/16"
150 FT.
-
-
-
3/8"
65 FT.
130 FT.
260 FT.
560 FT.
1/2"
-
95 FT.
185 FT.
320 FT.
5/8"
-
60 FT.
120 FT.
280 FT.
3/4"
-
40 FT.
75 FT.
185 FT.
Buy Eye Nuts
No items found.
For more information on eye nuts
call or email us today
