Spreader Beams

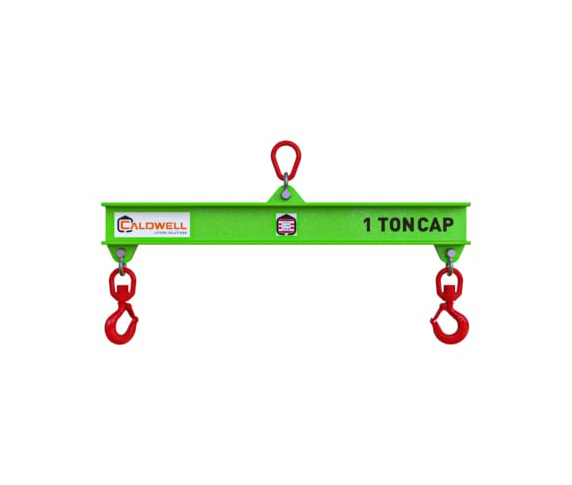

A spreader beam is a device comprised of a long bar that holds two slings apart and allows for the weight of a load to be evenly distributed across each of the slings. Spreader beams are designed to add stability to a lift by directly loading the top rigging and hooks. Spreader beams require a greater amount of headroom than a lifting beam. At Cumberland Sales, we offer fixed spreader beams, adjustable spreader beams, high-capacity spreader beams, high-capacity adjustable spreader beams, four-point spreader beams, high-capacity beam end fittings, and spreader beam fittings.

SPECS
CSC #8
CSC #10
CSC #11
CSC #23
PACKAGED UNIT WEIGHT
40
90
100
130
WINCH CAPACITY (LBS)
3,000
10,000
10,000
10,000
DRUM WIDTH
5.35"
5.00'
8.74"
21.00'
DRUM FLANGE SIZE (OUTER)
6"
9.92"
9.92"
9.92"
BOLT HOLE DIMENSIONS (0.5" BOLT)
4.57" × 5.69"
7.01 × 8.44"
11.04 × 8.44"
23 × 8.44"
OVERALL DIMENSIONS (Wx LX H)
7.00" × 13.20" × 7.50"
10.70" × 15.50" × 12.15"
10.70" × 19.20" × 12.15"
10.70" × 31.35" × 12.15"
Cable Capacity
CSC #8
CSC #10
CSC #11
CSC #23
1/4"
150 FT.
-
-
-
5/16"
150 FT.
-
-
-
3/8"
65 FT.
130 FT.
260 FT.
560 FT.
1/2"
-
95 FT.
185 FT.
320 FT.
5/8"
-
60 FT.
120 FT.
280 FT.
3/4"
-
40 FT.
75 FT.
185 FT.

Buy Crane Spreader Beams

No items found.

To learn more about spreader beams

call or email us today
