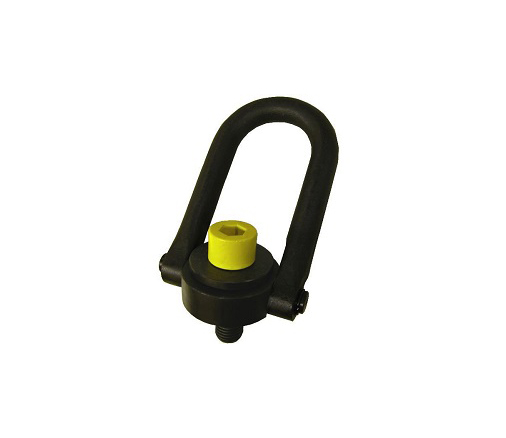

Swivel Hoist Ring
Also known as a center-pull hoist ring, a swivel hoist ring is the most common type of hoist ring.
Used in the same manner as shoulder pattern eye bolts to facilitate connecting hooks and chains to a workpiece, swivel hoist rings can both pivot 180 degrees and swivel 360 degrees.
The bail, usually a U-bar, is connected through the center of the body with a pin in a clevis-like configuration.
Additionally, a swivel hoist ring can rotate to the direction of force using its swivel bushing—while the swivel action allows the recommended working load limit to be maintained regardless of the lifting angle.
SPECS
CSC #8
CSC #10
CSC #11
CSC #23
PACKAGED UNIT WEIGHT
40
90
100
130
WINCH CAPACITY (LBS)
3,000
10,000
10,000
10,000
DRUM WIDTH
5.35"
5.00'
8.74"
21.00'
DRUM FLANGE SIZE (OUTER)
6"
9.92"
9.92"
9.92"
BOLT HOLE DIMENSIONS (0.5" BOLT)
4.57" × 5.69"
7.01 × 8.44"
11.04 × 8.44"
23 × 8.44"
OVERALL DIMENSIONS (Wx LX H)
7.00" × 13.20" × 7.50"
10.70" × 15.50" × 12.15"
10.70" × 19.20" × 12.15"
10.70" × 31.35" × 12.15"
Cable Capacity
CSC #8
CSC #10
CSC #11
CSC #23
1/4"
150 FT.
-
-
-
5/16"
150 FT.
-
-
-
3/8"
65 FT.
130 FT.
260 FT.
560 FT.
1/2"
-
95 FT.
185 FT.
320 FT.
5/8"
-
60 FT.
120 FT.
280 FT.
3/4"
-
40 FT.
75 FT.
185 FT.
Buy Swivel Hoist Rings
No items found.
For more information on swivel hoist rings
call or email us today
