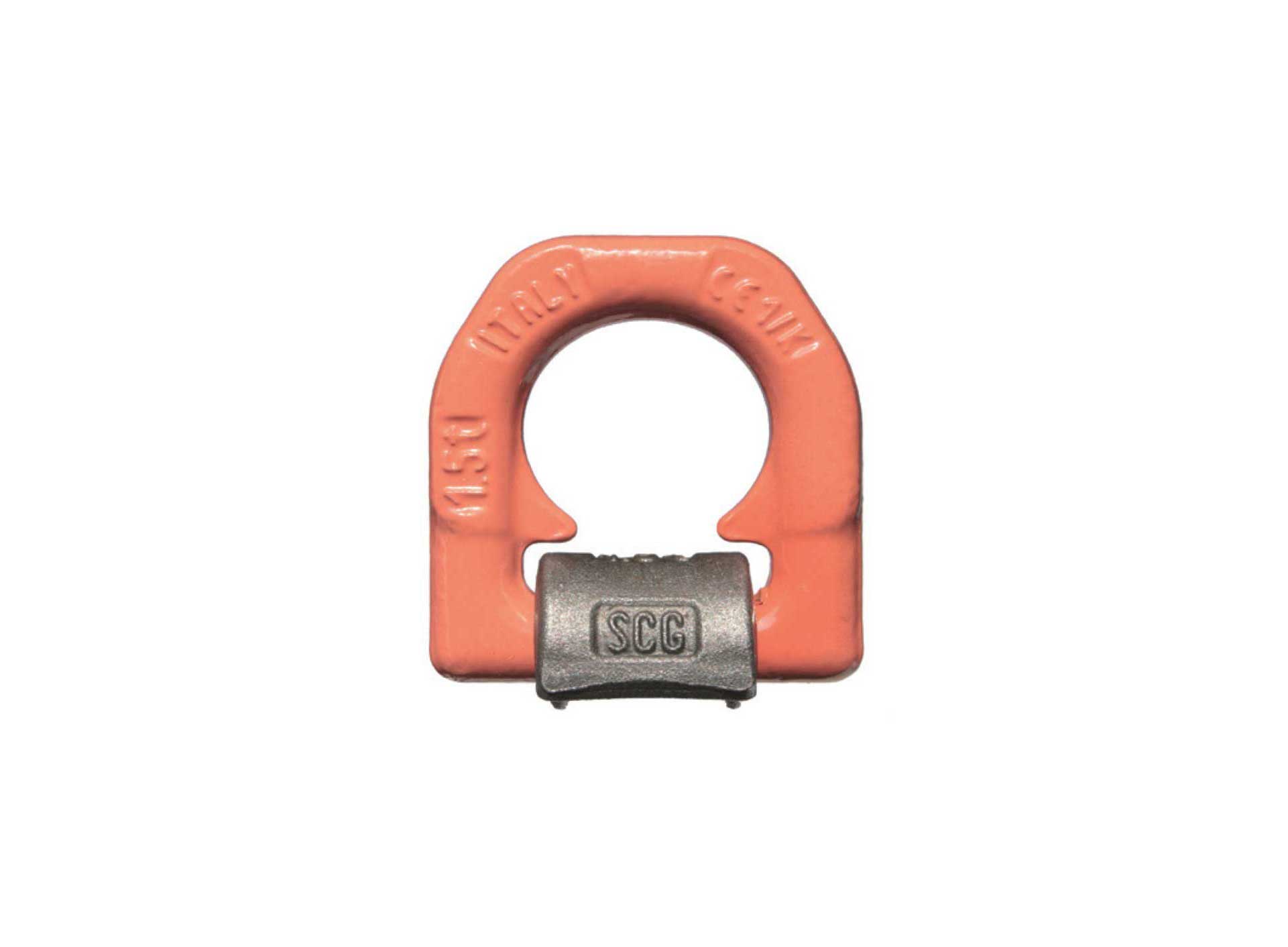

Weld-On D-Ring
Also called lashing rings, weld-on D-rings are primarily used as lifting suspension points, whether permanent or temporary, on unwieldy structures and fabrications.
Weld-on D-rings offer superior strength for even the heaviest of loads, and come with a weld-on bracket that allows the D-ring to rotate 180 degrees.
Weld on D-Rings are typically used to tie or lash down equipment or vehicles to a trailer, or possibly, the cargo bed of a truck.
SPECS
CSC #8
CSC #10
CSC #11
CSC #23
PACKAGED UNIT WEIGHT
40
90
100
130
WINCH CAPACITY (LBS)
3,000
10,000
10,000
10,000
DRUM WIDTH
5.35"
5.00'
8.74"
21.00'
DRUM FLANGE SIZE (OUTER)
6"
9.92"
9.92"
9.92"
BOLT HOLE DIMENSIONS (0.5" BOLT)
4.57" × 5.69"
7.01 × 8.44"
11.04 × 8.44"
23 × 8.44"
OVERALL DIMENSIONS (Wx LX H)
7.00" × 13.20" × 7.50"
10.70" × 15.50" × 12.15"
10.70" × 19.20" × 12.15"
10.70" × 31.35" × 12.15"
Cable Capacity
CSC #8
CSC #10
CSC #11
CSC #23
1/4"
150 FT.
-
-
-
5/16"
150 FT.
-
-
-
3/8"
65 FT.
130 FT.
260 FT.
560 FT.
1/2"
-
95 FT.
185 FT.
320 FT.
5/8"
-
60 FT.
120 FT.
280 FT.
3/4"
-
40 FT.
75 FT.
185 FT.
Buy Weld-On D-Rings
No items found.
For more information on weld-on D-rings
call or email us today
